GWS EDF55-300H

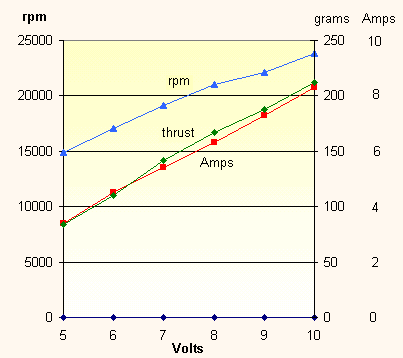

Measurements

Volts Amps Watts

rpm

 Thrust
5 3.4 17 14870

84g
6 4.5 27 17050

110g
7 5.4 38 19100

142g
8 6.3 50 21000

167g
9 7.3 66 22140

188g
10 8.3 83 23800

212g

fan diameter

5.5cm

hub diameter

2.55cm

fan pitch

11.4cm

power coeff

0.22

thrust coeff

0.46

Kv

3860 rpm/V

Io

0.7 Amps

Rm

0.37 Ohms
