hexTronik HXM27301300


This motor's performance is almost identical to the Little Screamer De Novo. It's slightly more efficient, so spins the same prop a little faster on less current. It does weigh a bit more though.

The manufacturer suggests using a 9x4.7 prop on 3S, but this draws close to 9A and efficiency is low, so it gets hot fast! To avoid overheating I recommend keeping the current draw below 7A.

Kv1150
Io0.35
Rm0.42

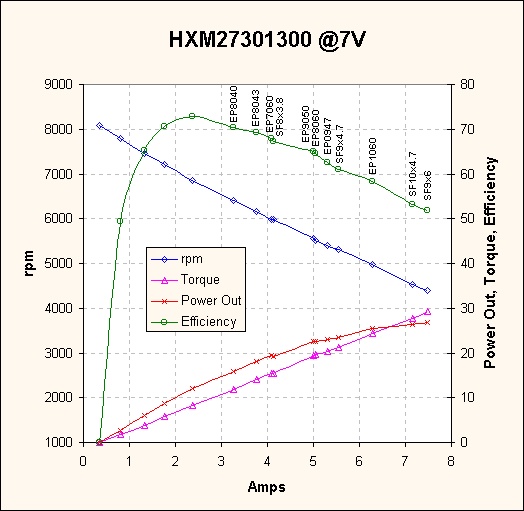

Prop Volts Amps rpm Watts Efficiency
none 7.0 0.35 8080 2.4 -
GWS EP6050 7.0 2.4 6864 16.5 73%
GWS EP8040 7.0 3.3 6408 22.7 70%
GWS EP8043 7.0 3.8 6162 26.1 69%
GWS EP7060 7.0 4.1 5986 28.5 68%
APC SF8x3.8 7.0 4.1 5975 28.7 67%
GWS EP9050 7.0 5.0 5550 34.8 65%
GWS EP8060 7.0 5.1 5521 35.1 65%
GWS EP0947 7.0 5.3 5402 36.9 63%
APC SF9x4.7 7.0 5.5 5307 38.5 61%
GWS EP1060 7.0 6.3 4984 43.6 58%
APC SF10x4.7 7.0 7.2 4535 49.6 53%
APC SF9x6 7.0 7.5 4400 51.8 52%

Prop Volts Amps rpm Watts Thrust(g)
none 11.1 0.5 - 5.5 -
GWS EP6030 10.0 2.4 10230 23.6 167
GWS EP7035 10.0 3.1 9784 31.2 225
APC SF7x4 10.0 5.0 8771 50.2 303
GWS EP8040 10.0 5.8 8361 58.0 356
GWS EP8043 10.0 6.4 8026 64.4 393
GWS EP9050 10.0 8.6 6915 85.8 480
