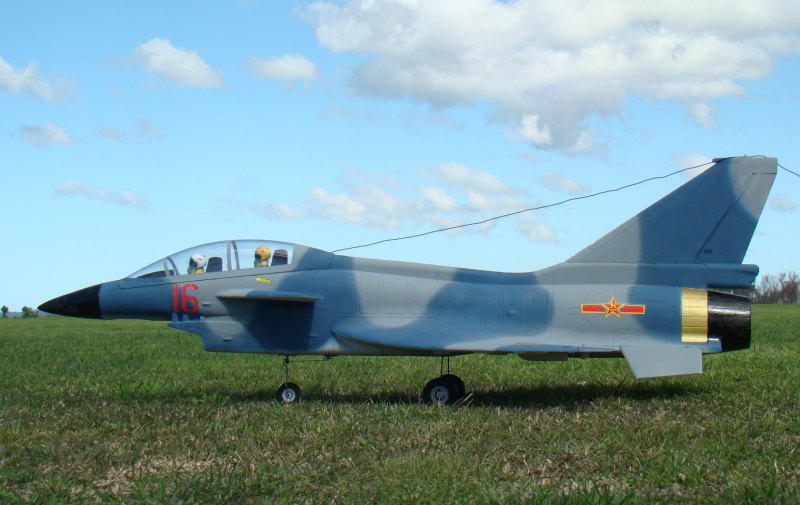

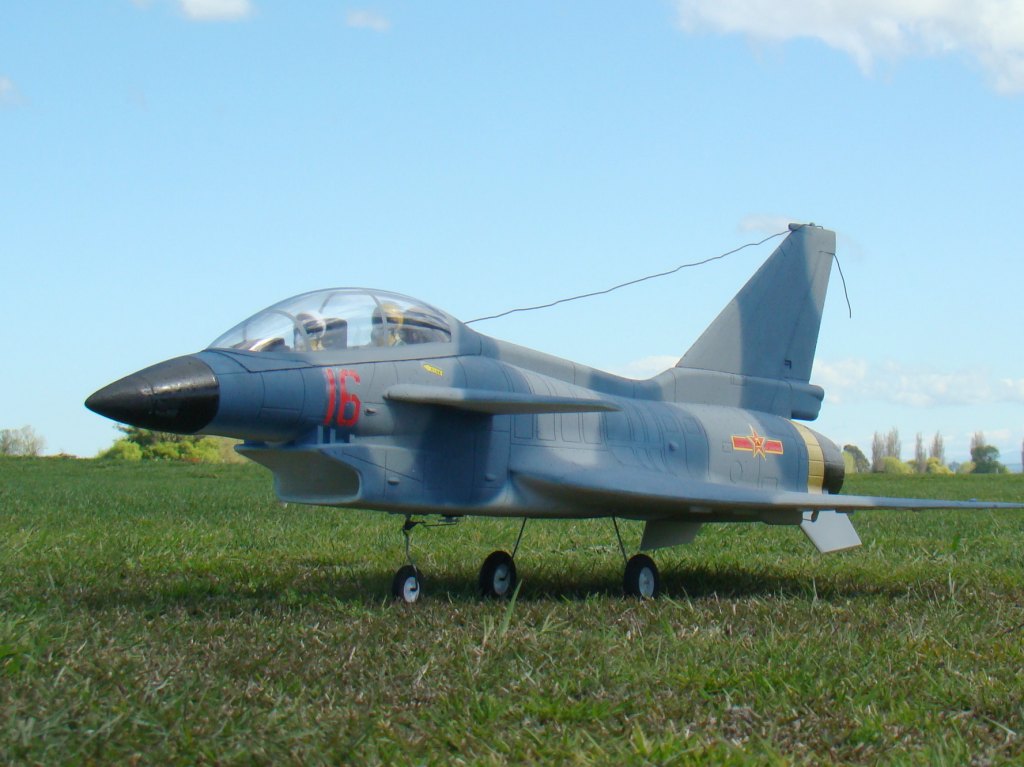

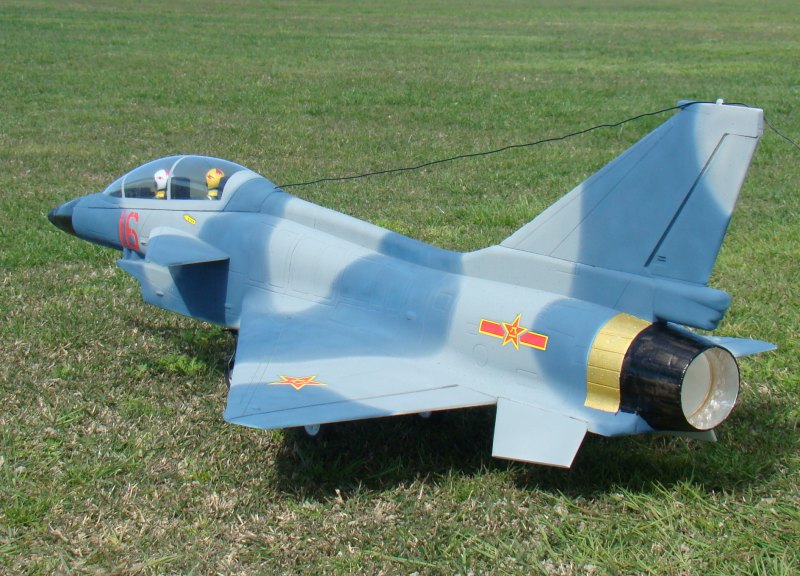

GWS J10 Chinese Fighter |
| Wingspan | 0.69m (27.2") |
| Wing Loading | 47g/dm2 (15oz/sqft) |
| Flying Weight | 855g (30.2oz) |
| Power Loading | 500W/kg (225W/lb) |
| CG | 120mm fron L.E. (at fuselage) |
| Motor | GWS BLM009 3840Kv |
| Ducted Fan | GWS EDF75x4 |
| Speed Control | Hobbywing Pentium 60A |
| Battery | Ecoflight 2300-3S 25C (11.1V) |
| Receiver | Spektrum AR7000 |
| Servos | 2x Hyperion DS12FCD (elevons), GWS Naro HP STD (nosewheel steering) |
| Controls | Elevons, Nosewheel, Motor |
| Construction | Expanded Polystyrene Foam |
