Little Screamer "De Novo"?


NOTE: Manufacturer's recommended maximum prop size is 9x5 on 2S Lipo, and 8x4.3 on 3S. RED indicates possible overload!

Prop Volts Amps rpm thrust(g) Watts Efficiency
none 7.0 0.35 8250 - 2.5 -
GWS EP6030 7.0 1.3 7699 76 9.1 59%
GWS EP7035 7.0 1.9 7335 115 13.3 68%
GWS EP6050 7.0 2.6 6971 122 17.9 72%
GWS EP8040 7.0 3.4 6459 206 23.8 70%
APCSF 8x3.8 7.0 4.3 5923 231 30.1 66%
GWS EP7060 7.0 4.4 5900 195 30.8 65%
GWS HD8060 7.0 4.8 5647 211 33.6 63%
GWS EP9050 7.0 5.0 5469 260 34.7 62%
APCSF 9x4.7 7.0 5.6 5155 281 39.2 59%
GWS EP1060 7.0 6.1 4849 311 42.7 55%
none 10.0 0.45 11850 - 4.5 -
GWS EP6030 10.0 2.3 10610 138 22.5 69%
GWS EP7035 10.0 3.3 9969 229 32.5 72%
GWS EP6050 10.0 4.5 9246 218 44.5 70%
GWS EP8040 10.0 5.9 8359 354 59.0 64%
GWS EP8043 10.0 6.5 7977 381 64.5 63%
GWS EP7060 10.0 7.2 7522 330 71.5 59%
APCSF 8x3.8 10.0 7.3 7414 383 72.5 58%
GWS EP8060 10.0 7.8 7046 347 77.5 54%

Kv1200
Io0.45
Rm0.47

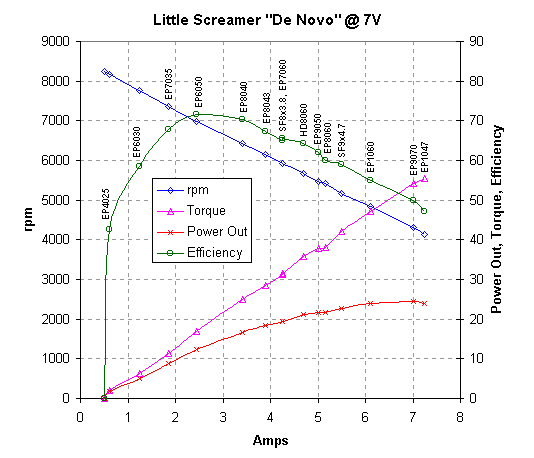

Dyno Test Results
