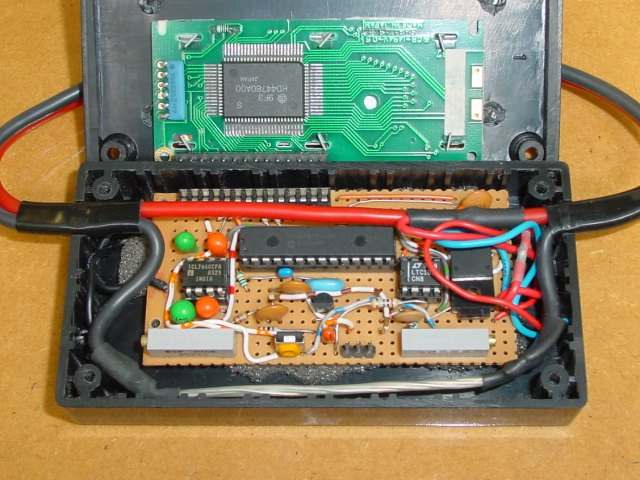

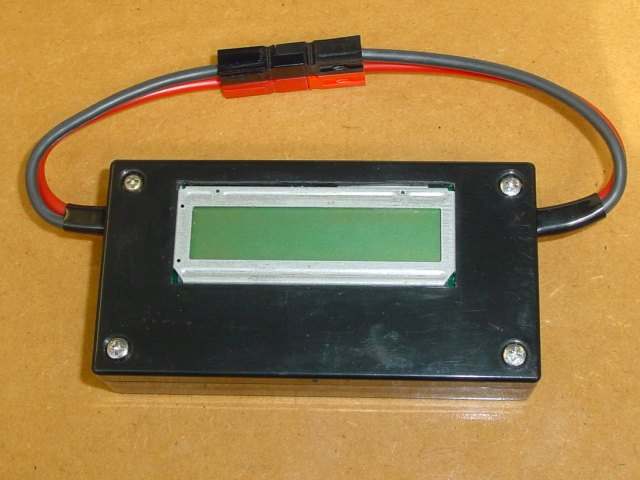

Wattmeter


  • 3.6 to 25 Volts
  • 0 to 51 Amps
  • 0 to 999 Watts
  • 2000~65000rpm, 2~6 blades
  • Hold button
Source code for PIC16F870/16F88 updated.gif V0.101 17th Oct 2010

LCD display include file

Hex file for PIC16F870 updated.gif

Hex file for PIC16F88 updated.gif

Wattmeter.gif wattmeter.brd updated.gif

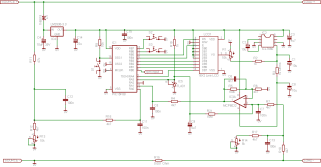

Circuit Diagram for PIC16F88
Eagle board layout for PIC16F88

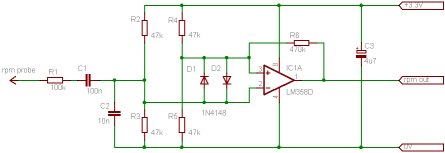

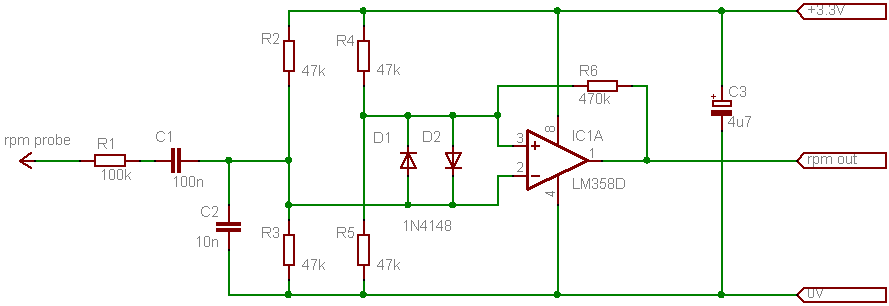

Brushless Motor RPM Sensor new.gif
